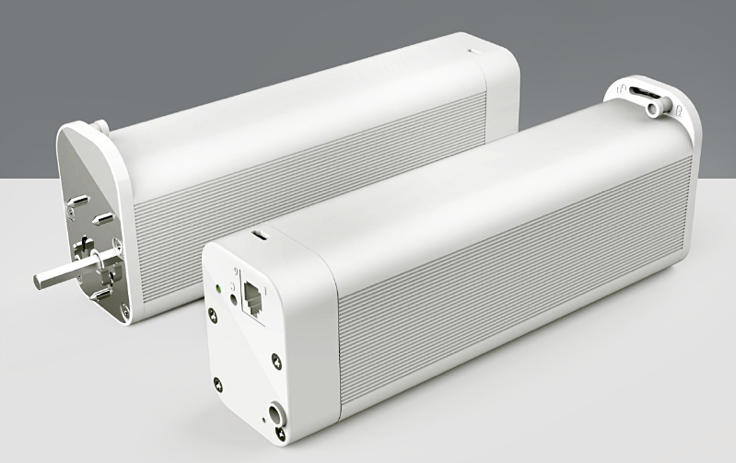

CURTAIN MOTOR S168 SERIES

FUNCTION AND FEATURES

  • Super Quiet with Noise Level 33db (A)
  • RPM adjustable 90/110/130 rpm
  • Automatic limit setting & memorized even without power
  • Soft start and stop
  • Built-in RF receiver for Remote Control
  • Pull to start
  • Curtain bounce to avoid extruding and keep it flat & straight
  • Stop itself against resistance in case of hindrance or overload
  • Manual operating in case of power off
  • Contact closure in low voltage
  • High voltage connecting
  • Power Adapter or Hard Wired to electrical wires
  • WiFi built-in as an option for mobile APP control
  • Single Motor or Dual Motor in tandem

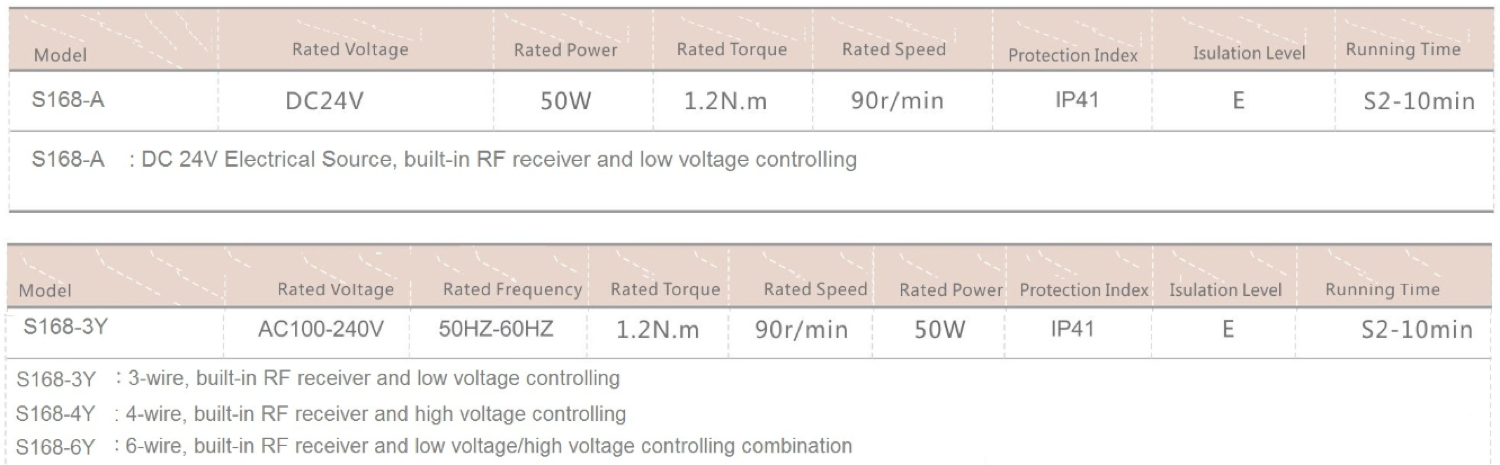

SPECIFICATIONS

Motor Selection

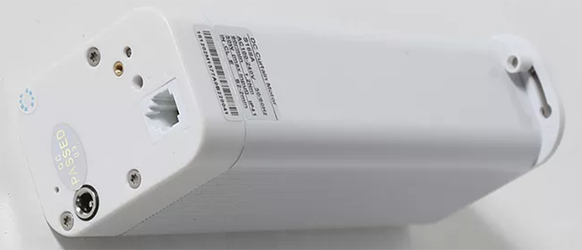

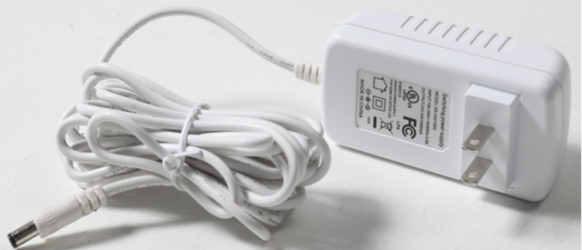

S168-A: Powered by Power Adapter

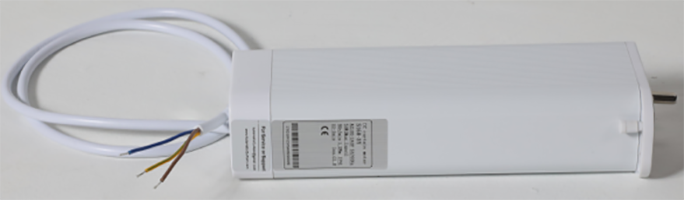

S168-3Y: Hard Wired to Electrical Wires

S168-4Y: High voltage connecting to a Wall Switch or Relay

S168-6Y: High voltage connecting to a Relay and external power

MOTOR COMPARISON CHART

Note 1: If Motor is connected to a Wall Switch, Hand Held Remote Control or Wireless Wall Control works.

If Motor is connected to a Relay/Module of Home Automation System, Hand Held Remote Control or Wireless Wall Control does not work.

Note 2: Using the 6-Pin RJ 12 Port + WiFi Smart Plug + Adapter Cable 1450

Or Using the 6-Pin RJ12 port + Hub + Controller/Module (Hub=SamSung SmartThings, Insteon Hub, Z-wave Hub, etc) (Controller = Mimolite Z-wave module, Insteon 2450 I/O Linc, etc.)

Note 3: Connect to Home Automation System in High Voltage only such as Control 4, Crestron, Insteon, etc.

Note 4: Connect to Home Automation System in High Voltage/Low Voltage such as Control 4, Crestron, Insteon, etc.
