Hand Held Remote Control

  • Capacitive touch screen
  • Photoconductive and sound notification
  • Frequency: Ask433.92MHz
  • Power of emission: <10mW
  • Battery: AAA 1.5V (2pcs)
  • Durable temperature: 0°C ~ +60°C

1-Channel Remote Control
3-Channel Remote Control
7-Channel Remote Control
9-Channel Remote Control
32-Channel Remote Control

Curtain Motor is able to learn many channels from one or more remote controls. This allows user to group curtains for open/close individually or simultaneously by first select the channel #.

e.g. If there is a dual track system for a curtain and a sheer(or 2 separated tracks for 2 curtains in 2 different rooms), the 3-channel Remote can be used as follow:

– Channel 1 operates the curtain only (or 1st curtain)
– Channel 2 operates the sheer only (or 2nd curtain)
– Channel 3 operates both simultaneously

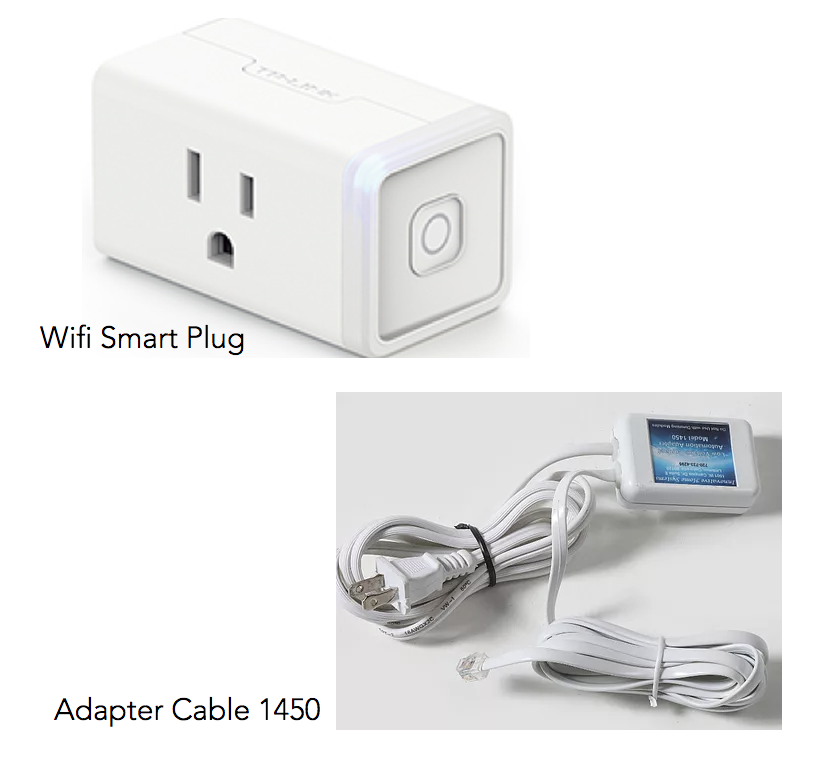

WiFi Smart Plug + Adapter cable 1450

The Smart Phone APP that comes with the WiFi Smart Plug is able to operate the curtain anywhere in the world and allows the user to schedule opening/closing the curtain.

The Adapter Cable 1450 is designed to connect between the 6-Pin Connectivity Port on Curtain Call Motor and a WiFi Smart Plug (Wemo, TP-Link, Idevices, …)

After the setup, Amazon Echo, Google Home or Apple Siri would be able to operate the curtain if you have one of these voice assistant devices.

This setup will only work for the following Motors:

(CL-920A, CL-920C3, S168A and S168-3Y)

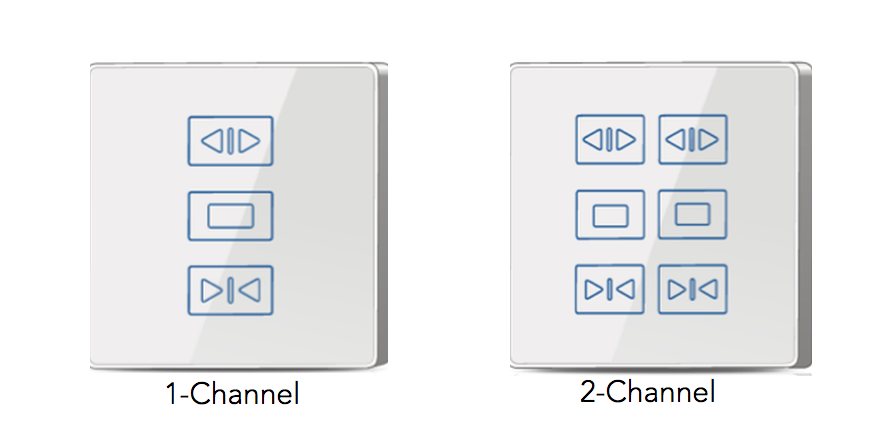

Wireless Wall Control

  • Acrylic panel with touch buttons
  • Photoconductive & sound notification
  • Standard 86mmx86mm size, wall surface mounting
  • Frequency: ASK433.92MHz
  • Battery: AAA 1.5V (2pcs)
  • Durable Temperature: 0°C ~ +60°C

Wired Low Voltage Wall Control

  • Simple and compact design
  • Standard 86mmx86mm size, wall surface mounting
  • 6P6C RJ12 connector
  • Easy Wiring
  • Output dry contact pulse signal to controlthe motor to open/close/stop

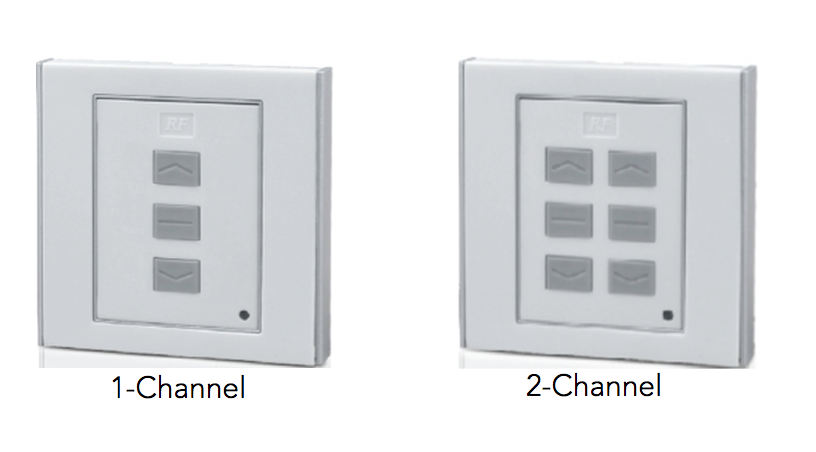

Wired High Voltage Wall Control

  • Fashionable panel, compact & elegant design
  • Resistive touch technology & blue back light
  • Control ling to open, close or stop the curtain.
  • Power (each channel): 300W
  • Rated voltage: either 120V/60Hz or 230V/50Hz
  • Frequency: ASK433.92MHz
  • Durable Temperature: 0°C ~ +60°C

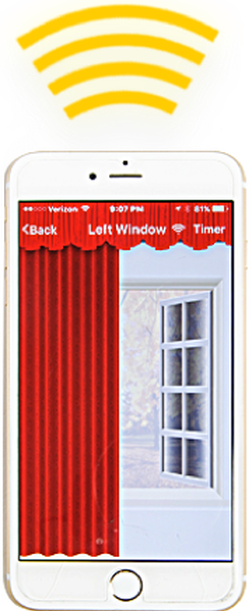

In House APP Control

  • Must be operated with the APP we provide. WiFi Connected.
  • S168-3YWiFi Motor only. It has to be hard wired to electrical wires for power.
  • Connectivity port for any other home automation will be disabled.
  • Apple iPhone orAndroid Phones
  • Support 2.4G bandwidth only
  • Remote Control and Wireless Wall Control would work as well
  • Timer for scheduling function
  • Support single or dual track system
  • Operates up to 50 systems
  • It does NOT support Amazon Echo, Google or Apple or any other home automation systems.

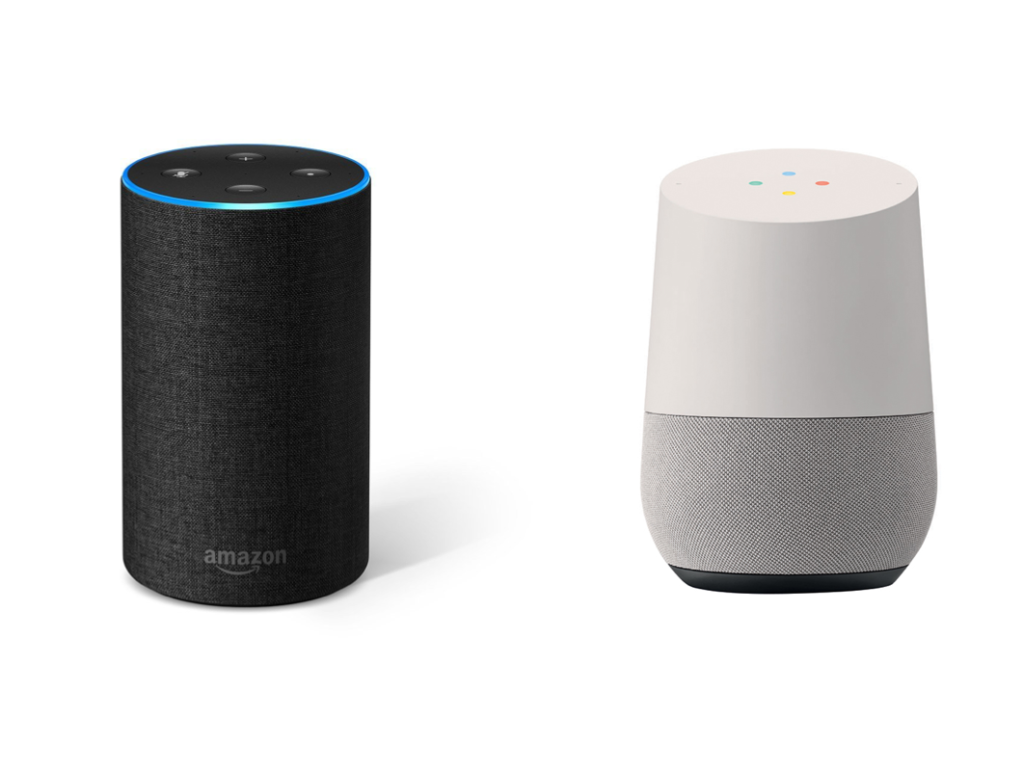

Amazon Echo or Google Home Control

  • S168-A or S168-3Y motor.
  • WiFi Smart Plug that works with Amazon Echo Alexa.
  • Adapter cable 1450 is needed to connect between the smart plug and 6-pin port on curtain motor.
  • Smart phone or Ipad control with APP provided by Smart Plug
  • Schedule to open/close curtain daily/weekly multiple times.
  • Each curtain motor requires its own WiFi Smart Plug + Adapter cable 1450 + 6-pin Port on curtain motor.

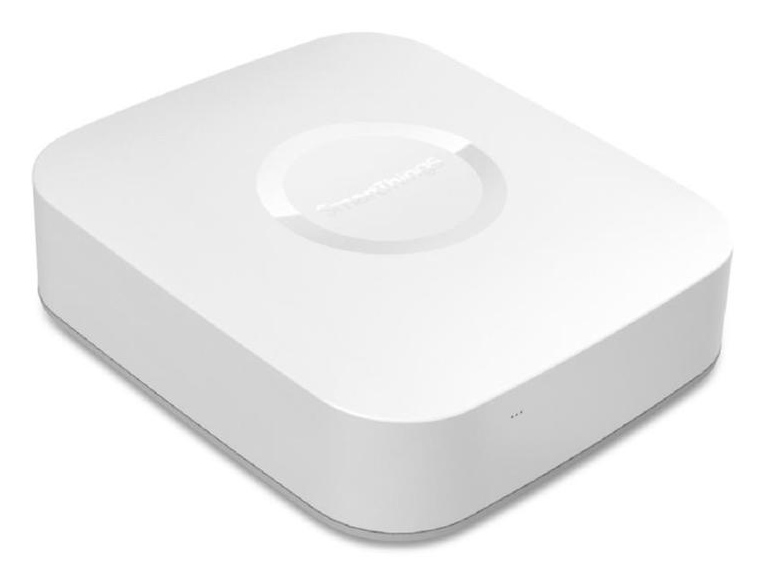

Samsung SmartThings Control

  • S168-A or S168-3Y motor.
  • Z-wave Mimolite module is needed to connect to the 6-pin port on curtain motor .
  • Smart phone or Ipad control with SmartThing APP.
  • Able to schedule opening/closing curtain daily or weekly.
  • Connects other IOT things such as light bulbs, Smart Plugs, wall switch, Nest, door locks, ..etc.
  • Works with Amazon Echo or Google Home

Apple Homekit (Siri) Control

  • S168-A or S168-3Y motor.
  • WiFi Smart Plug that works with Apple Homekit (Siri) e.g. Idevices
  • Adapter cable 1450 is needed to connectbetween the smart plug & 6-pin port on curtain motor.
  • Smart phone or iPad control with the APP provided by the WiFi Smart Plug.
  • Schedule to open/close curtain daily/weekly multiple times.
  • Each curtain motor requires its own WiFi Smart Plug + Adapter cable 1450 + 6-pin Port on curtain motor.

RJ-12 6-Pin Port for Dry Contact in Low Voltage

  • The 6-pin connectivity port is for “contact closure”.
  • Any Home Automation System such as Control 4, Z-Wave, Insteon, Crestron, Savant,….etc. that is able to dry contact in low voltage would be able to operate the curtain.
  • Amazon Echo, Google Home, Apple Homekit (Siri) is also able to operate the curtain through the above setup. (or using a WiFi Samrt Plug and Adapter Cable 1450)
